g.i. pipe

3 125

1.standard:BS GB ASTM
2.OD:21-377mm
3.WT:1.5-8mm
4.LTH:3.5-12m

g.i. pipe

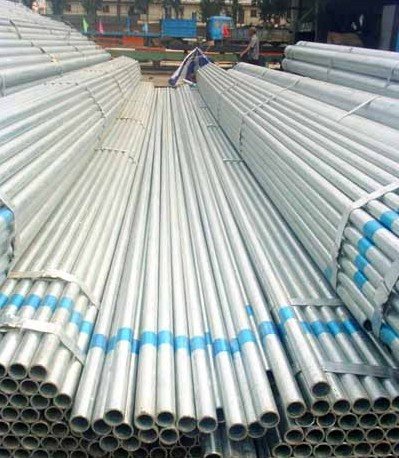

Galvanized steel pipe and tube
OD:3/4"-10"/21.30mm-273.10mm
WT:1.5mm-8mm
BS1387,ASTM A53
Q235,SS400,S235

Our product size:

OD:1/2"-48"(21.3mm-1219mm)
WT:SCH10-SCH80/(0.5mm-140mm)

API SPEC 5L

PSL 1:A25\A\B\X42\X46\X52\X56\X60\ X65 \X70

PSL 2:B\X42\X46\X52\X56\X60\X65\X70\ X80

API SPEC 5CT

Size:

OD: 1.05"(26.67mm)- 20"(508mm)

WT: 2.87mm-23mm

J55\K55\N80\L80\P110\Q125

LTC,STC,BTC,VAM,EUE,NUE,P

ASTM A500 Gr. A,B,C,D

ASTM A53 Gr. A,B

ASTM A106 Gr. A,B,C

ASTM A335 Gr. P1,P2,P5,P9,P11,P12,P15,P21P22,P91,P92

ASTM A199 Gr. T4,T5,T7,T9,T11,T21,T22,T91

ASTM A210 Gr. A-1, C

ASTM A209 Gr. T1,T1a,T1b

ASTM A519 Gr. 1020,1030,1045,1513,1524,4130,4135,4142

DIN17204 Gr. C22,Ck22,Cm22,C35,Ck35,C45,Ck45

EN10208 Gr. L245NB,L290NB,L360NB,L415NB

DIN17176 Gr. 25CrMo4,13CrMo44,10CrMo910,12CrMo910,12CrMo1210,12CrMo195

DIN2391-2 Gr. St35,St45,St52

DIN1629 Gr. St37.0,St44.0,St52.0

DIN17175 Gr. St35.8,St45.8,17Mn4,19Mn5,15Mo3,13CrMo44,10CrMo910

JIS G3444 Gr. STK290,STK400,STK490,STK500,STK540

JIS G3454 Gr. STPG 370,STPG 410

JIS G3455 Gr. STS370,TS 410,STS 480

JIS G3456 Gr. STPT 370,STPT 410,STPT 480

JIS G3461 Gr. STB340,STB410,STB510

JIS G3441 Gr. SCM 415 TK,SCM 418 TK,SCM 420 TK,SCM 430 TK,SCM 435 TK,SCM 440 TK

APPLICATION:

1,API SPCE 5L For the purpose of transportation of gas,water,oill in oil&gas industry.

2, API SPEC 5CT Tubing is used in extracting petroleum & natural gas. casing pipe serves as wall of well.

3, ASTM A106 For the purpose of the pipeline project of boiler,water&petroleum.

4, ASTM A53  It is used for conveying water,petrolem,gas and other common fluids.

5, ASTM A179 For tubed heat exchanger and similar heat conveying equipments

6, ASTM A192 For manufacture wall panel,economizer,reheater,superheater and steam pipeline of boilers.



Company Name

 Steel pipe CO.,LTD

Business Type

MANUFACTURE AND EXPORTER

Product

hot-dipped galvanized steel pipe

Spec Description

Chinese

English

Outside diameter

Wall thickness

Outside diameter

Wall thickness

8-450mm

1-60mm

1/8-20inch

SCH40-XXS

                    Material and standard

Item

Chinese Standard

American standard

German standard

1

10#

A53A

St37

DIN 1626

A106A

St37-2

DIN17175

A179C

St35.8

DIN17175

2

20#

ASTM A106B

St45-8

DIN 17175

ASTM A53B

St45-4

DIN 1626

ASTM A178C

St45-4

DIN1629

3

45#

ASTM A1045

CK45



4

16Mn

A210C

St52.4

DIN1629

St52

DIN1629

5

37Mn5

J55





.
